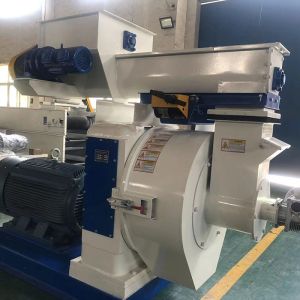

1T/H Wood Sawdust Pelletizer Machine MZHL420
Wood sawdust pelletizer is ring die type pellet mill which is
widely used in biomass and agriculture pellet machine .
Quick Advantage :
1. Gear driven.
2. Force feeder/can be alloy steel or stainless steel
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, imported bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
Working Principle :
The raw material comes into the pelletizing chamber , meanwhile the
ring die is rotating and driving the rolller shell ,under the
action of moving ,the raw material enters to the hole of ring die
and pressed by roller shell into the pellet and then cutted by the
scrap .
The main technical parameter :
| Model | MZLH420 | MZLH508 | MZLH650 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 200/185 8/6P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Ring Die Diameter (mm) | 420 | 520 | 650 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12
|
Details Ring die data of each wood pelletizer .
Model | MZLH420 | MZLH508 | MZLH650 |
Ring die inner diameter (mm) | 420 | 500 | 650 |
Ring die working width(mm) | 90 | 100 | 110 |
Ring die linear speed (m/s) | 3.16 | 3.78 | 3.54 |
Number of clamp | 3 pcs | 3 pcs | 8 pcs |
Number of roller | 2 pcs | 2 pcs | 2 pcs |
Number of cutter | 1 pcs | 1 pcs | 1 pcs |
Motor power | 90+2.2+0.75 | 90+2.2+1.5 | 185+3.0+1.5 |
Motor rotation speed | 750 | 750 | 595 |
Ring die hole diameter(mm) | 6/8/10 | 6/8/10 | 6/8/10 |
Generally details :
1. After sale service: 7X24 hours
2. Delivery time: 15 working days
3. Qty of Container: 3-5pcs 40 HQ
4. Port: Shanghai
5. Shipment time: 7-15days to Asia, 22-25days to EU and other
countries.
6. Operator: 3-5workers if total line .
7. Certificate: CE,ISO
8. Size of workshop: the hength is 6-8M, the length and width
depend on the capacity and flow diagram.
The structure of wood pelletizer :
1. Frequncy control feeder screw with anti-caking device .
2. Imported gear box ,high processing accuracy .
3. Imported gear processing equipment to ensure long time use .
4. Safety Assembly- protecting the main shaft ,motor and ring die .
5. Modulating alloy steel of main shaft with good bending
resistance and torsional performance .
6. Scraper panel assembly, with hard alloy knife to ensure the
pellet surface quality .
The spare parts :
1. Ring die : Replaced when be abrasion.A good ring die can improve
product quality and output, reduce energy consumption (granulation
energy consumption accounts for 30%-35% of the total energy
consumption of the entire workshop), and reduce production costs
(the cost of pellet mill die loss accounts for 25%-30% of the
maintenance cost of the entire production workshop). We ring die
:Customized stainless steel and alloy steel, carburized surface
,imported processing equipment .
2. Roller shell :Customized alloy steel matched our ring die
,higher capacity .
3. Five piece cover ,o ring ,oil seal etc .
